Product Information
A domed head bolt with a square anti-spin shoulder mainly used for clamping timber or attaching ironmongery to timber. NOTE: Nuts included and markings visible on the domed head. All sizes up to and including 150mm are fully threaded and lengths 160mm and above all have 150mm thread length.
Documents
Technical Specifications
Product Specifications
| Size (mm) | M6 x 100 |
| Nut Socket Size (mm) | 10 |
| Included Items | M6 Hex Full Nuts |
| Finish | Zinc |
| Head Type | Dome |
| Nut Type | Hex Full |
| Thread Type | Metric |
| Thread Ø (mm) | M6 |
| Point Type | B Point |
| DIN | DIN 603, DIN 934 |
| CE Standard | BS EN 14592:2008 |
| Material | Carbon Steel |
| Corrosion Rating (1-5) | 1 - Clean, dry & low humidity environments |
| Substrates | Hardwood, Softwood |
| Thread Pitch (mm) | 1 |
| Pack Dimensions L x W x H (mm) | 120 x 88 x 122 |
| Head Ø (mm) | 16 |
| Pack Weight (kg) | 2.34 |
| Thread Coverage | Fully Threaded |
| Inner Thread Ø d1 (mm) | 5.25 |
| Brand | TIMCO |
| Carton Qty (packs) | 9 |

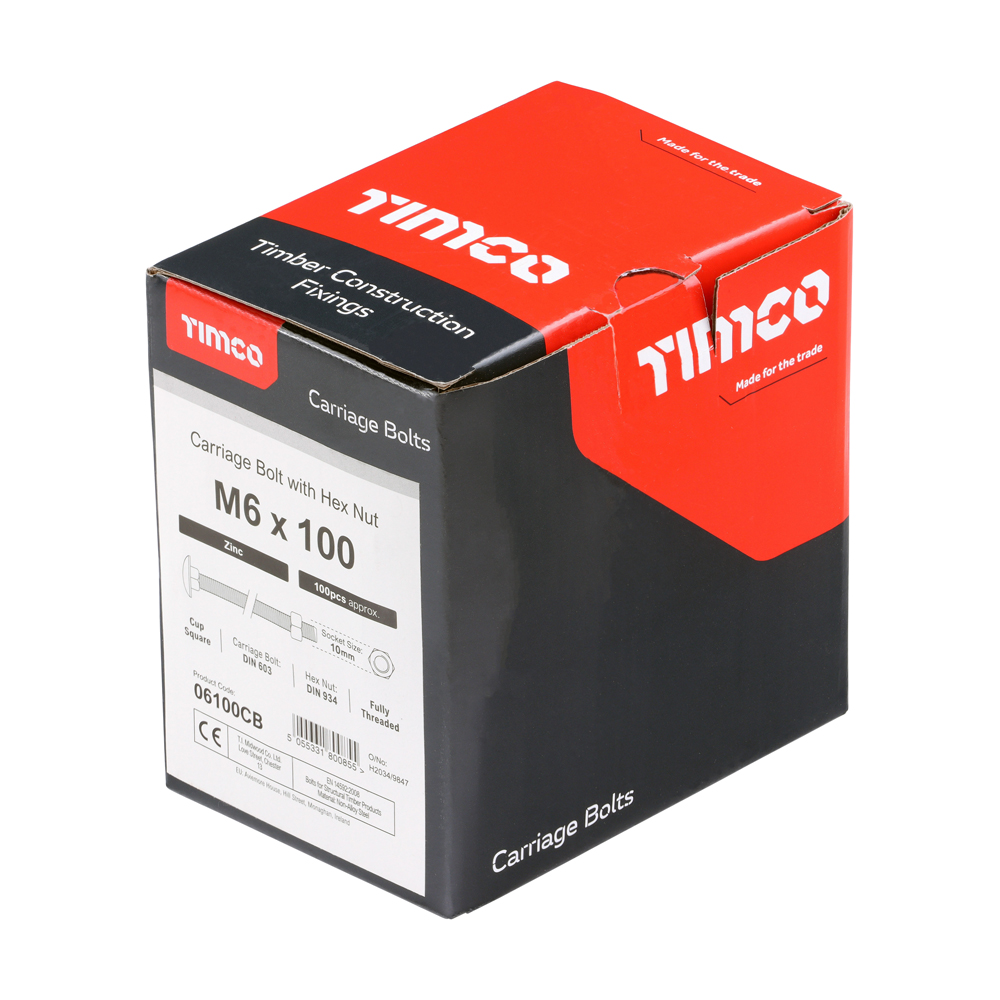

Carriage Bolts & Hex Nuts - Zinc
M6 x 100
- Product Code: 06100CB
- Pack Type: Box
- Pack Quantity: 100
- Barcode: 5055331800855
