Product Information
All the features and superior performance of the Classic Multi-Purpose Screw manufactured from A2 Stainless Steel. Ideal where ultimate corrosion resistance is required when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic. The collated strips are specifically designed to be compatible with all leading power tool brands. Stainless steel must be used where there is corrosive environment and/or the base material has inherent
- The collated strips are specifically designed to be compatible with all leading power tool brands
Documents
Technical Specifications
Product Specifications
| Size (mm) | 4.0 x 40 |
| Driver Bit Size | PZ2 |
| Recess Type | Pozi |
| Head Type | Double Countersunk |
| Screws Per Strip | 50 |
| Thread L (mm) | 35 |
| Thread Type | 40° Single Deep |
| Point Type | 25° Sharp with Single Slash |
| Corrosion Rating (1-5) | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Material | Austenitic Stainless Steel (A2-304) |
| Substrates | Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal, Corrosive Wood (e.g. Oak, Cedar) |
| Carton Qty (packs) | 10 |
| Pallet Qty (packs) | 240 |
| Pack Weight (kg) | 2.56 |
| Inner Thread Ø d1 (mm) | 2.5 |
| Size (imp.) | 8 x 1 1⁄2 |
| Head Ø (mm) | 7.87 |
| Thread Ø (mm) | 4 |
| Pack Dimensions L x W x H (mm) | 562 x 122 x 66 |
| Collated/Uncollated | Collated |
| CE Standard | BS EN 14592:2008 |
| Thread Coverage | Fully Threaded |
| Brand | TIMCO |

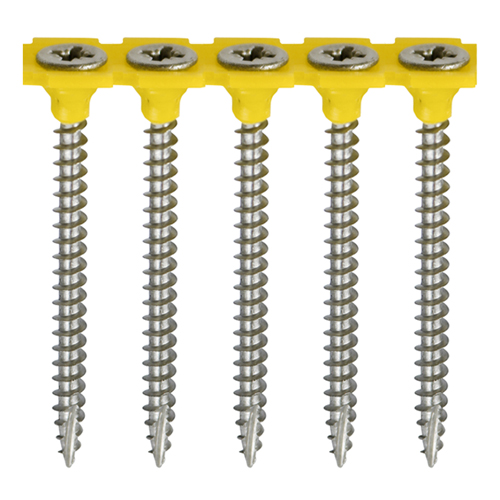

Collated Classic Multi-Purpose Screws - PZ - Double Countersunk - A2 Stainless Steel
4.0 x 40
- Product Code: 4040CLASSCOL
- Pack Type: Box
- Pack Quantity: 1000
- Barcode: 5055017587049
